SonataSPKMKII

The second generation of PinSound speakers.
Upgrade your speakers

A complete 2.1 set

Two front coaxial speakers and an 8" subwoofer, voiced as one audio system.

Built for pinball machines

PinSound requirements for each speakers features. Designed for pinball cabinet.

Hear & feel it

You will catch call-outs you never noticed, and feel the multiball through the lockbar.

Anyone can fit it

No cutting, no drilling. Machine-specific mounting kit and illustrated manual provided.

Front

The 5¼" Front Speaker MKII

These are the speakers that do the talking. Call-outs and sirens come from up here, and so does the top end of the music. All of it has to get through the speaker panel before it reaches you. The tweeter is a ½" PEI dome, a material that comes from pro audio, and it does not get harsh when you turn the volume up. The treated fabric surround is a double roll, so the cone moves the same distance in and out.
Diameter
5¼ in / 13.0 cm
Impedance
4 Ω nominal
Peak power
100 W
CABINET

The 8" Subwoofer MKII

This is the speaker that takes the bass off the front pair. Everything under the voices comes down here, and the 8" carries the explosions, the engines and the bass line of the music. A pinball cabinet is a big wooden box, and at full power you hear that across the room and feel it in the floor. Black Nomex spider, woven tinsel leads. Those are the parts that keep the subwoofer rattle-free after hours of play.
Diameter
8 in / 20.7 cm
Impedance
4 Ω nominal
Peak power
200 W
Obtenez votre SonataSPK
Find your SonataSPK

SonataSPK perfectly fits your machine

Check my machine

You get

5¼”Front speaker5¼”Front speaker8″SubwooferMounting kitMachine-specific

Fits

Bally and Williams WPC pinball machines

You need

NEO or PLUS table de mixage



Haut-parleurs d'usine

SonataSPK + NEO or PLUS

Channels

Mono 1.0, or 1.1 at best depending on the machine

Up to 2.1 stereo, depending on the sound pack

Front pair

A 5¼” and a small one

Two matched 5¼” two-way coaxials speakers

Bass

A 6″ cabinet woofer, thirty years old



La powerful 8″ subwoofer

Tone control

None

4 bands EQ adjustable at any time

Sound packs

The original ROM audio, as it shipped

Original & enhanced sound packs, played in stereo

Bass booster

None

Adjustable with a dedicated knob

External outputs

None

External subwoofer and Line-out connectors

Headphones output

None

Compatible with the Headphones Station accessory

Fitting

Original brackets

Machine-specific mounting kit included

Buy this kit

You get

4"Front speaker4"Front speaker8"SubwooferMounting kitMachine-specific

Fits

Data East pinball machines

You need

NEO or PLUS table de mixage



Haut-parleurs d'usine

SonataSPK + NEO or PLUS

Channels

2.1

2.1 stereo

Front pair

Two backbox speakers without tweeters

Two matched 4″ two-way coaxials speakers

Bass

Original cabinet woofer, 30+ years old

La powerful 8″ subwoofer

Tone control

None

EQ and subwoofer gain on the board, adjustable at any time

Bass booster

None

Adjustable with a dedicated knob

Sound packs

The original ROM audio, as it shipped

Original & enhanced sound packs, played in stereo

External outputs

None

External subwoofer and Line-out connectors

Headphones output

None

Compatible with the Headphones Station accessory

Fitting

Original brackets

Machine-specific mounting kit included

Buy this kit

You get

4"Front speaker4"Front speaker8"SubwooferMounting kitMachine-specific

Fits

Sega and Stern Whitestar pinball machines

You need

NEO or PLUS table de mixage



Haut-parleurs d'usine

SonataSPK + NEO or PLUS

Channels

Mono 1.1

Up to 2.1 stereo, depending on the sound pack

Bass

Original cabinet woofer, 30+ years old

A powerful 8″ subwoofer

Front pair

Two backbox speakers without tweeters

Two matched 4″ two-way coaxials speakers

Tone control

None

EQ and subwoofer gain on the board, adjustable at any time

Sound packs

The original ROM audio, as it shipped

Original & enhanced sound packs, played in stereo

Bass booster

None

Adjustable with a dedicated knob

External outputs

None

External subwoofer and Line-out connectors

Headphones output

None

Compatible with the Headphones Station accessory

Fitting

Original brackets

Machine-specific mounting kit included

Buy this kit

You get

4"Front speaker4"Front speaker8"SubwooferMounting kitMachine-specific

Fits

Stern SAM pinball machines

You need

PINBLASTER conseil



Stern factory speakers

SonataSPK + PINBLASTER

Front pair

Two backbox speakers without tweeters

Two matched 4″ two-way coaxials speakers

Bass

Stern’s stock cabinet woofer

La powerful 8″ subwoofer

Tone control

None

EQ on the PINBLASTER, adjustable at any time

Cut-off frequency

None

Cut-off frequency adjustable

Bass booster

None

Adjustable with a dedicated knob

External outputs

None

External subwoofer and Line-out connectors

Headphones output

None

Compatible with the Headphones Station accessory

Fitting

Original brackets

Machine-specific mounting kit included

Buy this kit

You get

4"Front speaker4"Front speaker8"SubwooferMounting kitMachine-specific

Fits

Stern SPIKE 1 machines

You need

No extra requirements. PINBLASTER recommended for extra power and tone control.

Front pair

Two backbox speakers without tweeters

Two matched 4″ two-way coaxials speakers

Bass

Stern’s stock cabinet woofer

La powerful 8″ subwoofer

Tone control

Through advanced settings only

Advanced settings or add PINBLASTER for direct EQ, cut-off frequency and subwoofer gain

Headphones output

External accessory required

Compatible with the Headphones Station accessory (with PINBLASTER)

External outputs

None

External subwoofer and Line-out connectors (with PINBLASTER)

Fitting

Original brackets

Machine-specific mounting kit included

Buy this kit

You get

5¼”Front speaker5¼”Front speaker8″SubwooferMounting kitMachine-specific PINVISION ready SonataSPK is fully compatible with original Stern Speaker Lighting

Fits

Stern SPIKE 2 pinball machines

You need

No extra requirements. PINBLASTER recommended for extra power and tone control.



Stern factory speakers

SonataSPK

Front pair

4″ front speakers without tweeters (5¼” for LE machines)

Two matched 5¼” two-way coaxials speakers

Bass

Stern’s stock cabinet woofer

La powerful 8″ subwoofer

Tone control

Through advanced settings only

Advanced settings or add PINBLASTER for direct EQ, cut-off frequency and subwoofer gain

Headphones output

External accessory required

Compatible with the Headphones Station accessory

Fitting

Original brackets

Machine-specific mounting kit included

Buy this kit

Status

Availability: Christmas 2026

SPIKE 3 compatibility is coming! Subscribe to our newsletter to be notified when it becomes available.

Check my machine

Every SonataSPK kit now ships with the MKII 8″ subwoofer.1

Obtenez votre SonataSPK
Check my machine
INSIDE THE MKII

MKII - Rebuilt from the magnet out

Every one of these features is there to make the SonataSPK the last set of speakers your pinball machine will ever need.

Your surrounds will not crumble

The subwoofer surround is butyl rubber. Foam surrounds fail in ten to twenty years, which is almost certainly why you are replacing your originals right now.

It still sounds like itself in ten years

A treated fiber cone. Untreated paper takes on moisture, gains mass and goes soft. That is what makes an old speaker sound dull.

No rattle to chase

The tinsel leads are sewn down. Loose leads slap the cone at volume, and owners spend months blaming the cabinet for it.

Louder from the same amplifier

An oversized magnet. More flux means more output per watt, and enough thermal headroom that hour three sounds like hour one.

Cleaner when it is working hard

The dust cap is inverted and the former is vented. Inverted dust csap minimizes vent chuffing and turbulence noise. Hard transients stay clean at the volume you actually play at.

It only goes on one way

A keyed connector with a locking clip. Wiring a speaker out of phase is the classic upgrade mistake, and here it is physically impossible. It cannot shake loose either.

It plugs into your harness

Legacy spade pads, spade terminals. No adapter to buy, nothing to cut, no soldering iron required.

Obtenez votre SonataSPK
COMPATIBLE WITH
In the box

Everything the install needs

SonataSPK is complete and plug and play.
No soldering, no cutting, no permanent modification, everything is provided in the box.

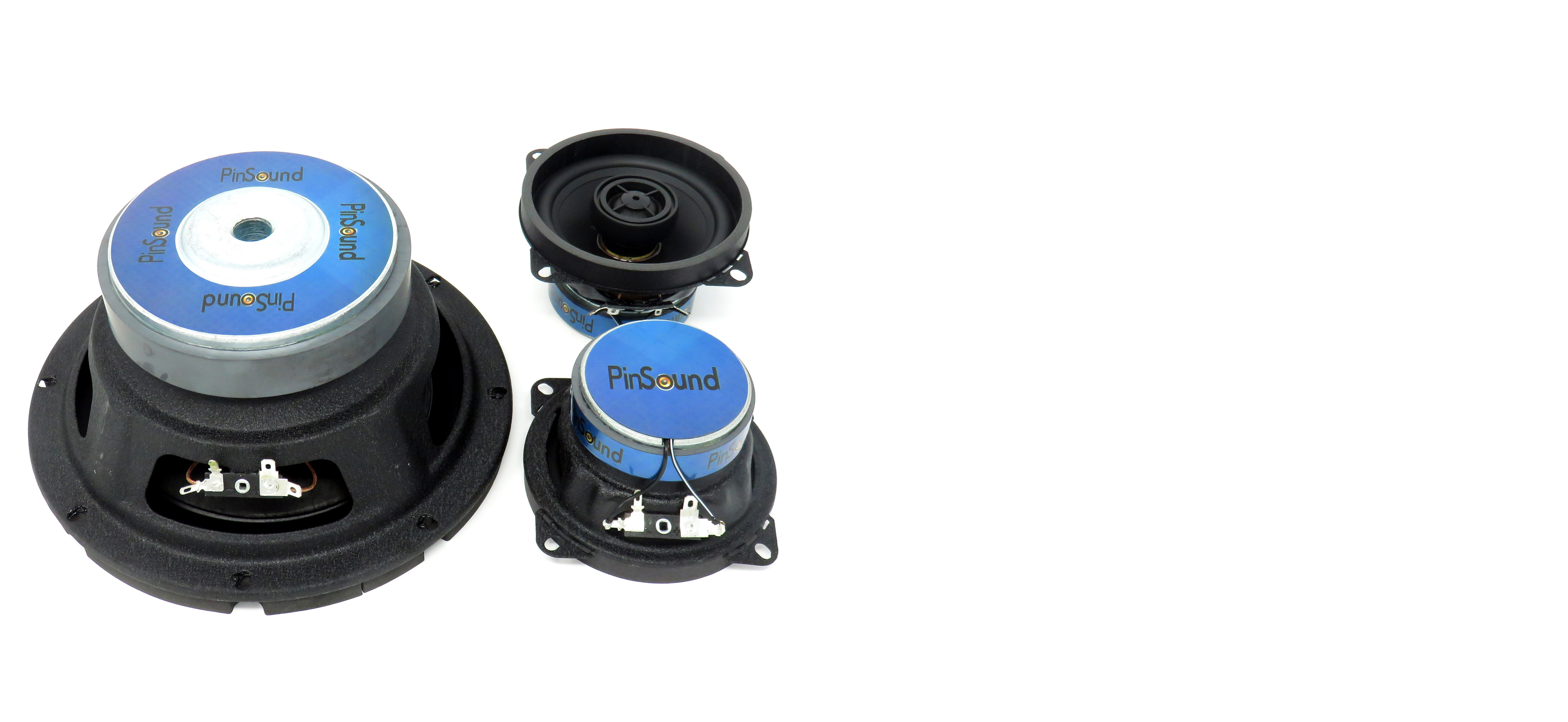

  • Two 5¼" two way coaxial front speakers MKII  1
  • One 8" cabinet subwoofer MKII
  • Cablage stéréo 2.1  3
  • Speaker adapters  3
  • Subwoofer adapter  3
  • Complete screws and spacers set   3
  • Illustrated step by step installation manual
  • Step by step installation video
SonataSPK_5_8_Pair_Perspective_2_PinSound
SonataSPK_58_MKII_front
Technical audio specifications

5¼" FrontMKII

Cone materialTBD

SurroundTBD

Tweeter½” PEI tweeter

Nominal diameter5¼ in

Nominal impedance4 Ω

Frequency responseTBD

SensitivityTBD

Amplifier powerTBD RMS

Peak powerTBD

Dimensions H×W×D13.0 × 13.0 × 6.2 cm

Weight, pair boxedTBD

Two way coaxial with a ½” PEI tweeter, behind the speaker panel where every call-out has to cut through. PEI is the engineering film used in pro-audio compression drivers, stiff and self-damping, so speech stays clear and never turns hard. Treated paper cone, fabric surround, vented former.

8" SubwooferMKII

Cone materialTBD

SurroundButyl rubber

MagnetTBD

Nominal diameter8 in

Nominal impedance4 Ω

Frequency responseTBD

SensitivityTBD

Amplifier powerTBD RMS

Peak powerTBD

Dimensions H×W×D20.7 × 20.7 × 10.5 cm

Weight, boxedTBD

Steel dust never reaches the coil

The pole vent is meshed. A pinball machine sheds steel filings, and a magnet pulls them straight in.

4" Front1 MKI

Cone materialPolypropylene

SurroundASV high temp voice coil

Tweeter1″ mylar

Nominal diameter4 in

Nominal impedance4 Ω

Frequency response139 Hz – 18 kHz

Sensitivity86 dB

Amplifier power10 – 60 W RMS

Peak power110 W

Dimensions H×W×D10.1 × 10.1 × 6.3 cm

Weight, pair boxed1.33 kg / 2.93 lbs

Hear your machine again.
SonataSPK MKII

Obtenez votre SonataSPK
Select your machine
Vous êtes la NOUVELLE NORME pour tout ce qui concerne le flipper. Votre travail acharné et vos produits uniques sont obligatoires pour tous ceux qui ont un flipper. Je vous remercie encore une fois !
Eric
Eric
Vous êtes géniaux ! Deuxième commande. Je n'en reviens pas de la rapidité avec laquelle vous expédiez. Les produits sont excellents et rendent mon nouveau hobby encore meilleur. Je voulais juste vous remercier ! Quelle entreprise fantastique et bien gérée ! J'adore le son de vos haut-parleurs et le moteur shaker. Les prix, les instructions et les personnes sont excellents ! Merci à l'équipe de PinSound !
Jeff
Jeff
Je n'arrive pas à croire que les sons soient si bons. Ma machine est devenue complètement différente et tellement meilleure. Les haut-parleurs sont géniaux. Ceux d'origine sont vraiment horribles. Vos produits pinsound sont d'une qualité exceptionnelle. Ils ont un aspect et un toucher de qualité et j'en suis très heureux. C'est vraiment de la haute qualité.
Pete
Pete
  1. The MKII covers the 8" subwoofer and the 5¼" front speaker. The 4" front speaker is still the MKI speaker, unchanged and in full production. Kits shipping 5¼" fronts: Bally and Williams WPC, Stern SPIKE 2. Kits shipping 4" fronts: Data East, Sega and Stern Whitestar, Stern SAM, Stern SPIKE 1.
  2. Sound boards are not part of a SonataSPK kit and are sold separately. The kits for Bally and Williams, Data East, and Sega and Stern Whitestar require a PinSound NEO or PLUS board. The kit for Stern SAM requires a PINBLASTER. The kits for Stern SPIKE 1 and SPIKE 2 work with or without a PINBLASTER board.
  3. Where the machine requires it.
