Advanced sound technology
for your beloved pinball machine
Upgrade now

Enhance your pinball game like never before

Audio Excellence

Discover how PinSound sound boards will enhance your pinball machine.

Extended compatibility

The very same PinSound sound board can be installed in more than 100 different pinball machines.

High quality and high definition

Download and play instantly with enhanced and new sounds or create your own sound pack!

Rediscover your pinball machine

A new sound package means a complete new game! You’ll start a fresh new journey on your pinball machine.

Loud and clear

Thanks to the double high efficiency class-D amplifiers and to the advanced PinSound technology, your pinball machine will sound loud and clear.
PinSound NEO


The best of the audio technology, no fancy features

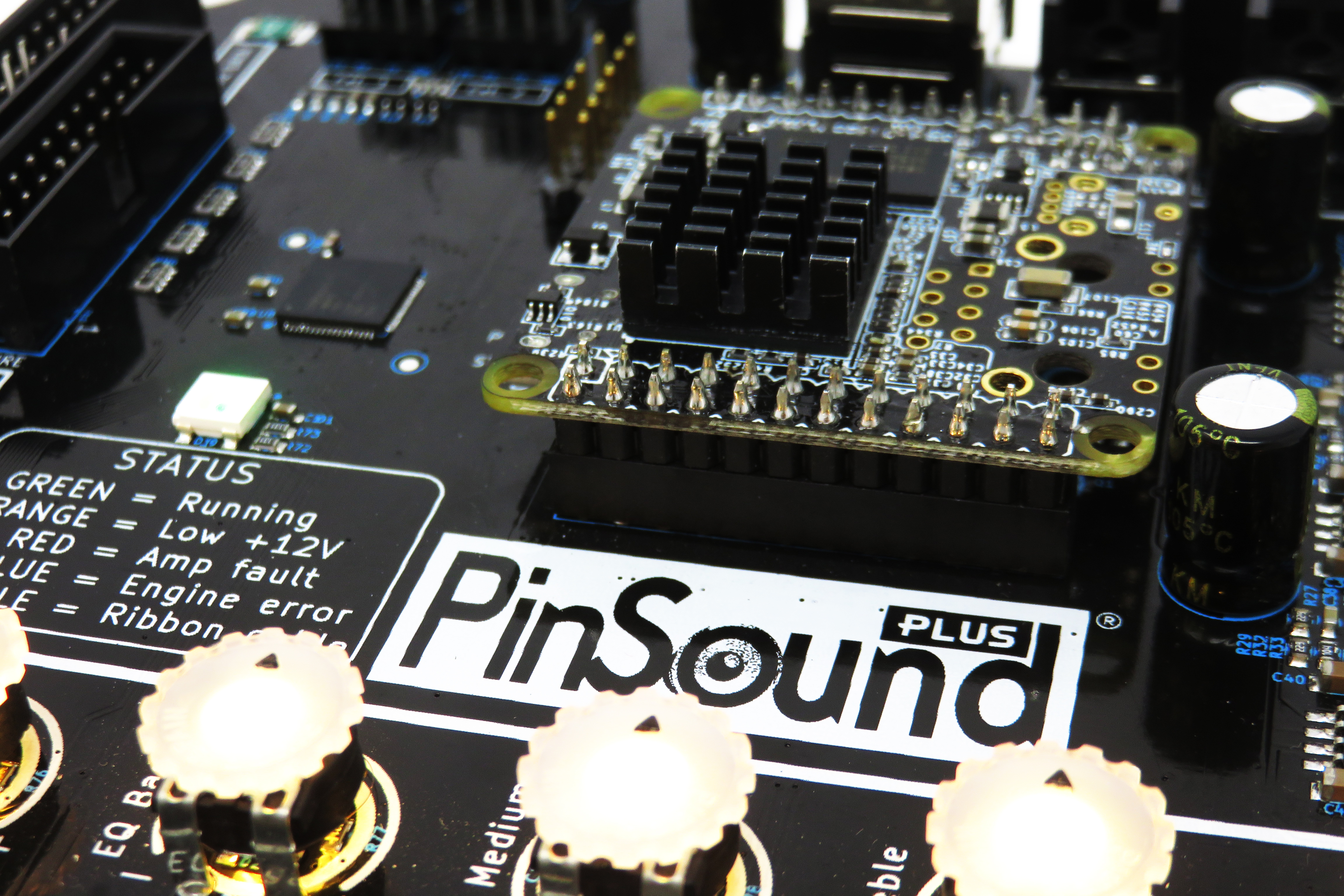

PinSound PLUS


The most advanced and complete pinball sound board ever made

Every sounds comes alive

The NEO and PLUS sound boards provide the ultimate audio experience on your pinball machine. Our sound boards are designed with the latest cutting edge technologies to make your gameplay more immersive.





Speaker outputs
Universal sound board 100+ machines
(Bally / Williams / DataEast / SEGA / STERN)
Enhanced high quality sounds
5 min installation / easy setup
Load multiple sound packs
Right/Left/Center Class D amplifiers
Headphones Station compatible
Motion Control Shaker compatible
Auto-mute / headphones connected
Original mono output
(Bally Williams WPC & System11)
Easy machine swap
Adjustment knobs
(Subwoofer Booster & Headphones gain)
Dual audio
(Simultaneous headphones & speakers)
Optimized for factory speakers

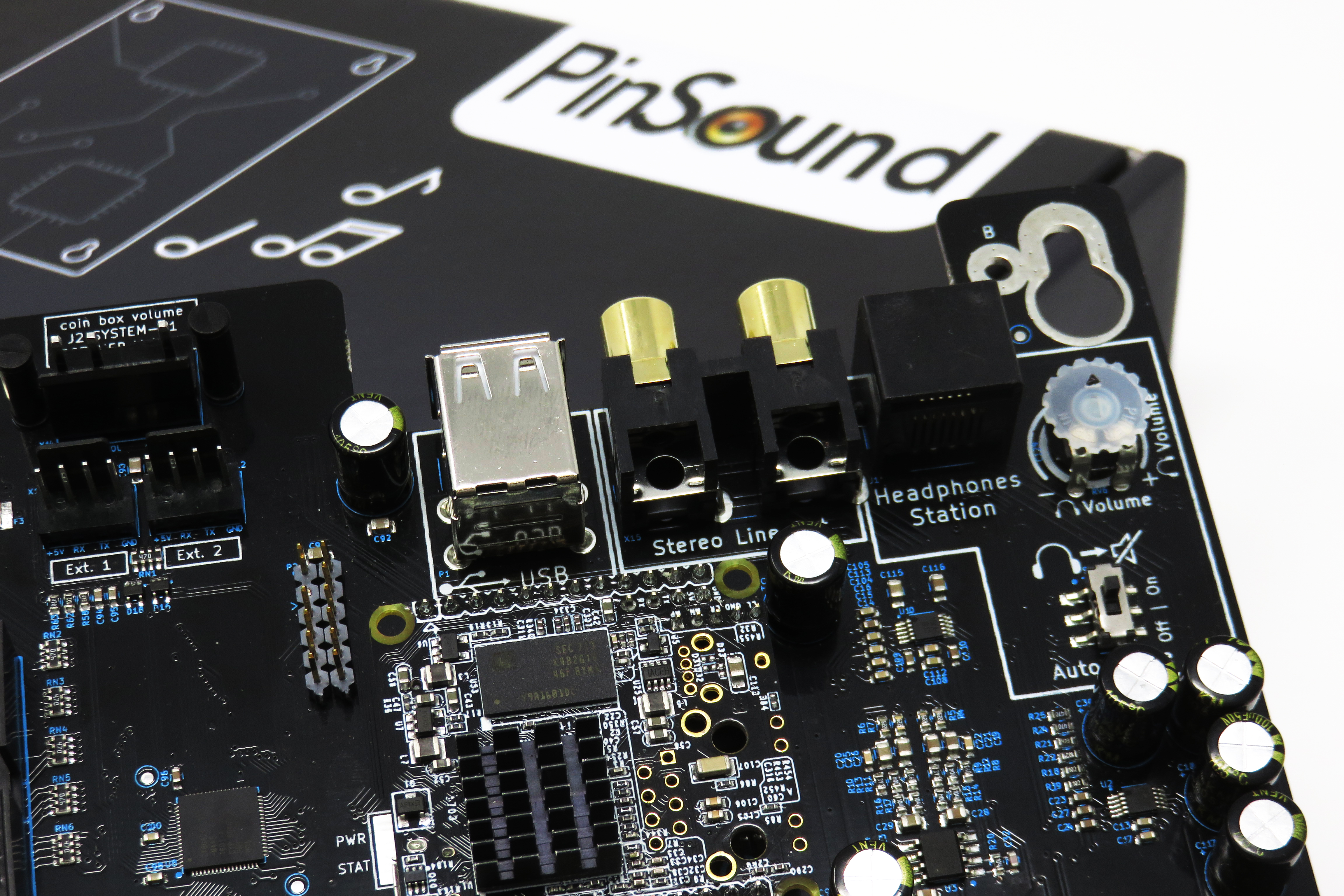

RCA line-out
Extra capacitors / shielded inductors / cooling heatsinks / voltage LEDs
EQ 4 bands equalizer DSP
Warranty

Original
sound board

Speaker outputs : Mono or Stereo
Universal sound board 100+ machines
(Bally / Williams / DataEast / SEGA / STERN)
Enhanced high quality sounds
5 min installation / easy setup : -
Load multiple sound packs : -
Right/Left/Center Class D amplifiers : -
Headphones Station compatible
Motion Control Shaker compatible
: -
Auto-mute / headphones connected : -
Original mono output
(Bally Williams WPC & System11)
: -
Easy machine swap : -
Adjustment knobs
(Subwoofer Booster & Headphones gain)
: -
Dual audio
(Simultaneous headphones & speakers)
: -
Optimized for factory speakers : -
RCA line-out : -
Extra capacitors / shielded inductors / cooling heatsinks / voltage LEDs : -
EQ 4 bands equalizer DSP : -
Warranty: -


PinSound NEO

Speaker outputs : Stereo 2.1
Universal sound board 100+ machines
(Bally / Williams / DataEast / SEGA / STERN)
Enhanced high quality sounds
5 min installation / easy setup
Load multiple sound packs
Right/Left/Center Class D amplifiers
Headphones Station compatible
Motion Control Shaker compatible
Auto-mute / headphones connected
Original mono output
(Bally Williams WPC & System11)
:
Stereo 2.1 rewiring required
Easy machine swap :
Extra mounting feet required
Adjustment knobs
(Subwoofer Booster & Headphones gain)
:
3 levels switches
Dual audio
(Simultaneous headphones & speakers)
Optimized for factory speakers
RCA line-out
Extra capacitors / shielded inductors / cooling heatsinks / voltage LEDs
EQ 4 bands equalizer DSP
Warranty: 2 years warranty


PinSound PLUS

Speaker outputs : Stereo 2.1 / Mono 1.1 & 1.0
Universal sound board 100+ machines
(Bally / Williams / DataEast / SEGA / STERN)
Enhanced high quality sounds
5 min installation / easy setup
Load multiple sound packs
Right/Left/Center Class D amplifiers
Headphones Station compatible
Motion Control Shaker compatible
Auto-mute / headphones connected
Original mono output
(Bally Williams WPC & System11)
Easy machine swap
Adjustment knobs
(Subwoofer Booster & Headphones gain)
Dual audio
(Simultaneous headphones & speakers)
Optimized for factory speakers
RCA line-out
Extra capacitors / shielded inductors / cooling heatsinks / voltage LEDs
EQ 4 bands equalizer DSP
Warranty: Lifetime product warranty

PinSound, a game changer upgrade

Is your pinball machine supported? Check it out!

Pinball collectors love PinSound and they say it loud

  • null

    Rob K.

    The board is amazing, i have just ordered another 3 pieces.
    Thank you!

  • null

    Miguel B.

    I already have PinSound on my T2 and Indiana Jones and It’s amazing!!

  • null

    Chris Z.

    Hands down, the best mod anyone can make to their pinball machine!

Lifetime warranty

Every PinSound product is designed to offer a high and long-lasting quality. Our PinSound sound boards have been designed and manufactured with the best care to be incredibly resistant and reliable.

PinSound PLUS is covered by a product lifetime warranty! As long as this product is manufactured, it will be replaced if anything happens due to materials or manufacturing defects. This warranty doesn’t cover misuse or neglect of the product.

Specification

  • plug and play pinball machine sound board
  • auto-detection & auto-configuration system
  • play with original or custom sounds
  • up to 7 simultaneous tracks
  • multiple different sound packages on the same flash drive
  • switch sound package on-the-fly
  • up to 48000Hz sound CD quality
  • 3.5 mm jack output (PLUS)
  • 4 extension ports (shaker and future accessories)

  • smart self-diagnosis status LED
  • digital dust-resistant RGB backlit potentiometers (PLUS)
  • hardware protection
  • user friendly connectors identification
  • mis-insertion preventing mechanism
  • overload / overcurrent / overvoltage resettable protection
  • weak power supply detection
  • designed with love and passion in France

  • premium noise isolation
  • high efficiency 2.1 stereo class-D amplifiers
  • digital gain controlled pre-amplifiers
  • audio digital-to-analog (DAC) channels 92dB SNR
  • 4 bands digital tone control equalizer (PLUS)
  • sub booster control
  • digitalized analog door volume potentiometer inputs
  • dedicated PinSound Headphones Station connector
  • dedicated stereo line-out RCA gold-plated connectors (PLUS)



Bally / Williams WPC89
Bally / Williams WPC DCS/95
Data East
STERN Whitestar

Factory sound board
+ factory speakers

Bally / Williams WPC89 : 1 x 10W
Mono 1.0
Bally / Williams WPC DCS/95 : 1 x 10W + 10W
Mono 1.1
Data East : 2 x 10W + 10W
Stereo 2.1
STERN Whitestar: 1 x 10W + 10W
Mono 1.1

PinSound NEO/PLUS
+ factory speakers

Bally / Williams WPC89 : 2 x 10W + 20W
Stereo 2.1
Bally / Williams WPC DCS/95 : 2 x 10W + 20W
Stereo 2.1
Data East : 2 x 15W + 20W
Stereo 2.1 (with Power Booster)
STERN Whitestar: 2 x 10W + 20W
Stereo 2.1

PinSound NEO/PLUS
+ PinSound speakers

Bally / Williams WPC89 : 2 x 15W + 30W
Stereo 2.1
Bally / Williams WPC DCS/95 : 2 x 15W + 30W
Stereo 2.1
Data East : 2 x 15W + 30W
Stereo 2.1 (with Power Booster)
STERN Whitestar: 2 x 15W + 30W
Stereo 2.1

Compatibility list

PinSound NEO and PinSound PLUS are replacement sound boards for the following original references:

  • Data East Rev3 : 520-5050-0X / 520-5077-00 / 520-5126-02)
  • System 11-C Sound Board : D-11581
  • WPC pre-DCS Sound Board : A-12738
  • WPC DCS Sound Board : A-16917
  • WPC-95 AV Board (with or without original AV Board) : A-20516-50041
  • SEGA / STERN Whitestar (CPU section must be working): 520-5136-00 / 520-5137-01
  • STERN Whitestar (CPU section must be working): 520-5300-00

High quality electronic components

Great care was taken while designing the PinSound NEO and PinSound PLUS. To guarantee high quality audio performance in a single universal integrated board, each electronic components has been selected and qualified.

  • Cypress embedded system engine
  • NXP audio amplifiers
  • Texas Instrument pre-amplifiers
  • ARM processor
  • Sandisk memory

null

Fast shipping

Your PinSound+ board shipped within 48h

null

The best of the technology

More than 5 years of work to let you play with the best of the technology

null

Start a new game!

The sound is one of the most important part for a full immersion experience

null

Extended connectivity

Heaphones, external subwoofers, shaker, LED strip, ... The limit is your imagination!

null

Upgrade your pinball machine.

Buy Now - Worldwide shipping

FAQ

Once your package has been shipped, you’ll receive a tracking number by email.

Orders are usually shipped within 48 hours.

You need a screwdriver… and that’s all!

The PinSound+ boards are warranted to the original owner against manufacturing defects for the lifetime of the product.

Subscribe and get timely updates from your favorite products.

Don’t worry, your email won’t be spamed, sold, or shared with any third party. And of course, you can unsubscribe at any time.

Made by the PinSound Brothers

A few years back, Timothée and Nicolas aka « The PinSound Brothers » embarked on the challenge of designing a new sound board that could bring high quality sound to yesterday’s pinball machines. The PinSound project was born and after a full round of designing, engineering and problems solving, they were able to organize the manufacturing process of the PinSound boards.

To beat an ambitious challenge, you always have to train and develop high skills. After 6 years, the two brothers have reached the point where all these skills are merging to become a unique savoir-faire !
