Prepare to embark on a heart-racing audio odyssey.

Get your SonataSPK

Looking for a better sound?

Fullness for your pinball machine immersion

Upgrade your machine

The PinSound SonataSPK speakers kit provides an amazing sound upgrade

High quality speakers

2-ways coaxial high sensitivity speakers with tweeter & 8" subwoofer with extended bass frequency response.

Rediscover your machine

A whole new soundtrack as you will hear so many new details and feel immersed into the game.

Easy to install

The installation is completely plug’n play with the complete mounting set and a friendly instruction manual.

The best PinSound audio system upgrade

Specifications

  • 4 or 5 inch 2-ways coaxial high sensitivity speakers set
  • 8 inch subwoofer high sensitivity with extended bass frequency response
  • High quality stereo 2.1 harness (if required)
  • Speaker adapters (if required)
  • Subwoofer adapter (if required)
  • Screws set
  • Illustrated step by step installation guide

Features




PINBLASTER compatibility
PINVISION compatibility
Stereo 2.1 output
Digital EQ equalizer
Sub booster
Subwoofer / Line-out connector
Play with enhanced sound pack
Standalone speakers kit
Require NEO or PLUS sound board
Mounting kit included

Factory speakers

PINBLASTER compatibility :
Stern SPIKE2 only
PINVISION compatibility :
Stern SPIKE2 only
Stereo 2.1 output :
1.0/1.1/2.1
Digital EQ equalizer
Sub booster
Subwoofer / Line-out connector
Play with enhanced sound pack
Standalone speakers kit
Require NEO or PLUS sound board
Mounting kit included:

SonataSPK Speakers
for Stern SPIKE 1&2

PINBLASTER compatibility
PINVISION compatibility
Stereo 2.1 output
Digital EQ equalizer
Sub booster
Subwoofer / Line-out connector
Play with enhanced sound pack :
Standalone speakers kit
Require NEO or PLUS sound board
Mounting kit included

SonataSPK Speakers
for NEO & PLUS

PINBLASTER compatibility :
PINVISION compatibility :
Stereo 2.1 output
Digital EQ equalizer
Sub booster
Subwoofer / Line-out connector
Play with enhanced sound pack
Standalone speakers kit
Require NEO or PLUS sound board
Mounting kit included

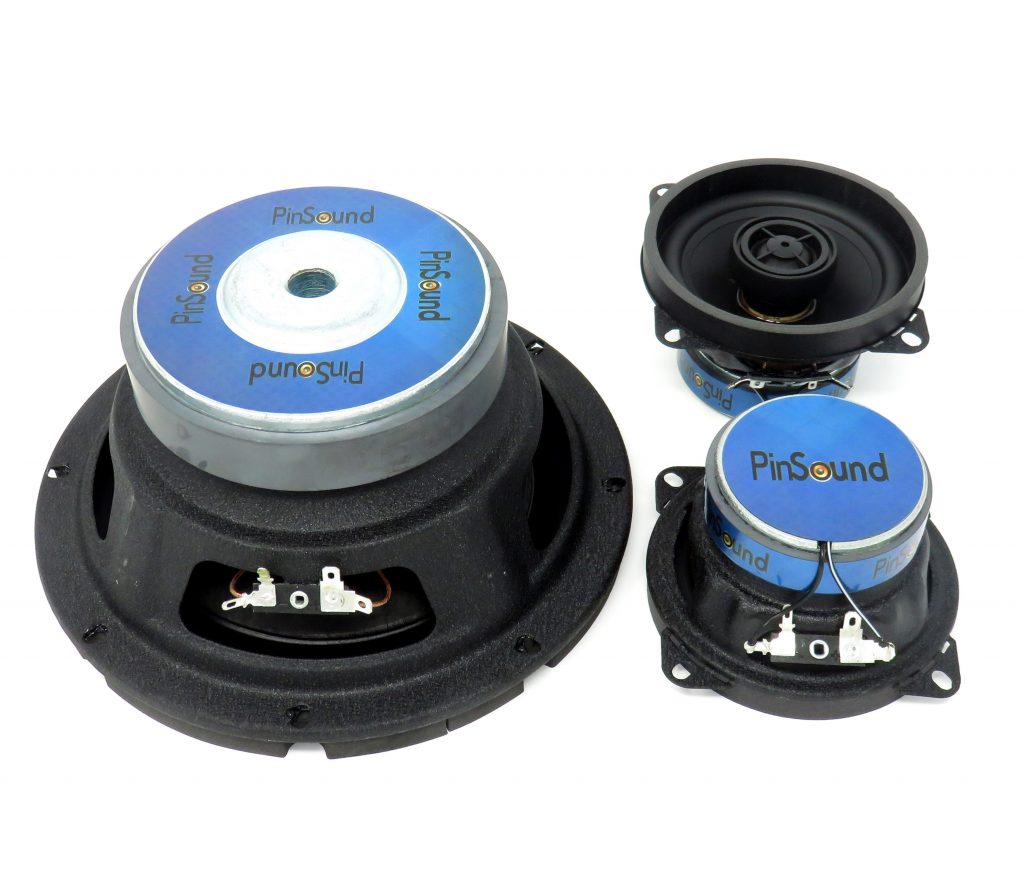

Technical Audio Specifications

5¼" PinSound Speakers

  • Coaxial Drivers: ASV High Temperature Voice Coil / Cone material Polypropylene / Tweeter: 1" Mylar
  • Nominal Diameter: 5¼"
  • Nominal Impedance: 4 Ohms
  • Frequency Response (+/-3dB): 105Hz - 18kHz
  • Sensitivity: 88dB
  • Recommended Amplifier Power: 20 - 60W RMS
  • Peak Power: 150W
  • Dimensions (HxWxD): 13.0cm x 13.0cm x 6.2cm
  • Total weight (pairs of 2 speakers with packaging): 1.49kg (3.28lbs)

4" PinSound Speakers

  • Coaxial Drivers: ASV High Temperature Voice Coil / Cone material Polypropylene / Tweeter: 1" Mylar
  • Nominal Diameter: 4"
  • Nominal Impedance: 4 Ohms
  • Frequency Response (+/-3dB): 139Hz - 18kHz
  • Sensitivity: 86dB
  • Recommended Amplifier Power: 10 - 60W RMS
  • Peak Power: 110W
  • Dimensions (HxWxD): 10.1cm x 10.1cm x 6.3cm
  • Total weight (pairs of 2 speakers with packaging): 1.33kg (2.93lbs)

8" PinSound Subwoofer

  • Drivers: ASV High Temperature Voice Coil 35mm / Magnet size 120mm x 20mm / Butyl Rubber Surround
  • Nominal Diameter: 8"
  • Nominal Impedance: 4 Ohms
  • Frequency Response (+/-3dB): 43Hz - 3kHz
  • Sensitivity: 89dB
  • Recommended Amplifier Power: 20 - 100W RMS
  • Peak Power: 250W
  • Dimensions (HxWxD): 20.7cm x 20.7cm x 10.5cm
  • Total weight with packaging: 2.49kg (5.48lbs)
  • Provided Hardware Mounting Kit: screws / spacers / adapters / wiring
  • Provided Manual: Installation manual

Your feedback

You guys are the NEW STANDARD for anything pinball. Your hard work and unique products are mandatory for anyone who have a pinball machine. Thank you again!
Eric
Eric
You guys are awesome! Second order. I can’t believe how fast you ship. Great products make my new hobby even better. Just wanted to thank you! What a fantastic, well run business! Love the sound of your speakers and the shaker motor. Great prices, instructions, and PEOPLE! Thank you PinSound team!
Jeff
Jeff
I can't believe the sounds are so great. It has made my machine a completely different one and so much better now. The speakers are awesome. The original ones are shockingly horrible. Your pinsound items are of exceptional high quality. They have a quality look and feel so I'm very happy with that. Top quality indeed.
Pete
Pete
Previous
Next
Get your SonataSPK

MADE BY THE PINSOUND BROTHERS

More than 10 years ago, Nicolas and Timothée, aka “The PinSound Brothers”, set themselves the challenge of designing a new sound board from scratch to improve the sound of their favorite pinball machine: The Twilight Zone.

Passionate about pinball machines since childhood and coming from a family of musicians, Nicolas and Timothée are trained engineers, respectively in software and hardware.

After two whole years of development and sleepless nights, the alliance of this shared passion and their technical expertise gave birth to the very first replacement sound board for pinball machines: the “PinSound Board”. The PinSound adventure was just beginning!

After a very enthusiastic reception from the community, the two brothers continued to innovate to offer even more products. Always with the same objective: to give you a totally new and immersive experience with your pinball machine.

In addition to new soundtracks, PinSound now offers products such as replacement CPU boards, shaker kits, speaker kits, headphone connectivity… These products are compatible with 150+ different pinball machines, including the latest STERN Spike pinball machines.

“Enhance your machine and start a new game!”
