Headphones Station MASTER

What help do you need?

Hardware Installation

install the Headphones Station MASTER on the left or right front leg of the pinball machine
attach the wiring under the cabinet

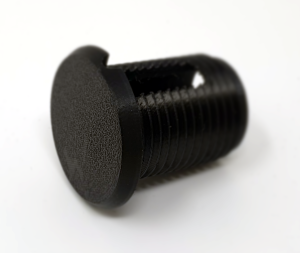

run it behind then inside the backbox (you can use the topper hole on top of the backbox or thru aeration holes)
PLUS & NEO sound boards: follow the instructions below
STERN Spike 2: plug the wiring to the SPIKE2 cpu board (CN3 connector)

Headphones Station MASTER installation

PLUS & NEO: installation

First, make sure your PLUS or NEO sound board is up-to-date with the latest firmware.

Then install the Headphones Station MASTER adapter following these 4 steps:

1/ connect the adapter into EXT1 + EXT2 ports

2/ connect the short RJ45 cable

3/ connect the Headphones Station MASTER cable

4/ if you have a Motion Control board, connect it back to EXT 1

Inline adapter version

Flat adapter version

PLUS & NEO: switch to another sound pack

With a PLUS or NEO sound board, if you put multiple sound packages on the same flash drive, you can switch to the next available sound pack at any time by using the volume control. Turn the volume down to zero (you’ll hear a small beep indicating you’re at the minimum) then double tap (up down / up down). A preview of the new mix will then be played. Then turn back the volume to the desired level

STERN SPIKE 2: software configuration

Once installed, to enable advanced settings, go to:

settings menu / Standard Adjustements (S.P.I.).
setting “EXTERNAL VOLUME KNOB FUNCTION”.

Front LED

On the Headphones Station MASTER, due to a Spike technical limitation, there is no red LED.

Auto-Mute main speakers

When your Headphones Station MASTER is installed, when you connect your headphones, the pinball machine will automatically mute the main speakers.

Dimension and bolts specification

The Headphones Station MASTER is compatible with any standard pinball leg bolts spacing.

Installing the Headphones Station adds about 6mm (less that 1/4″) thickness.
