RocketCPU

for Bally Williams WPC pinball machines​

Designed for a long journey

For your Bally Williams WPC pinball machine

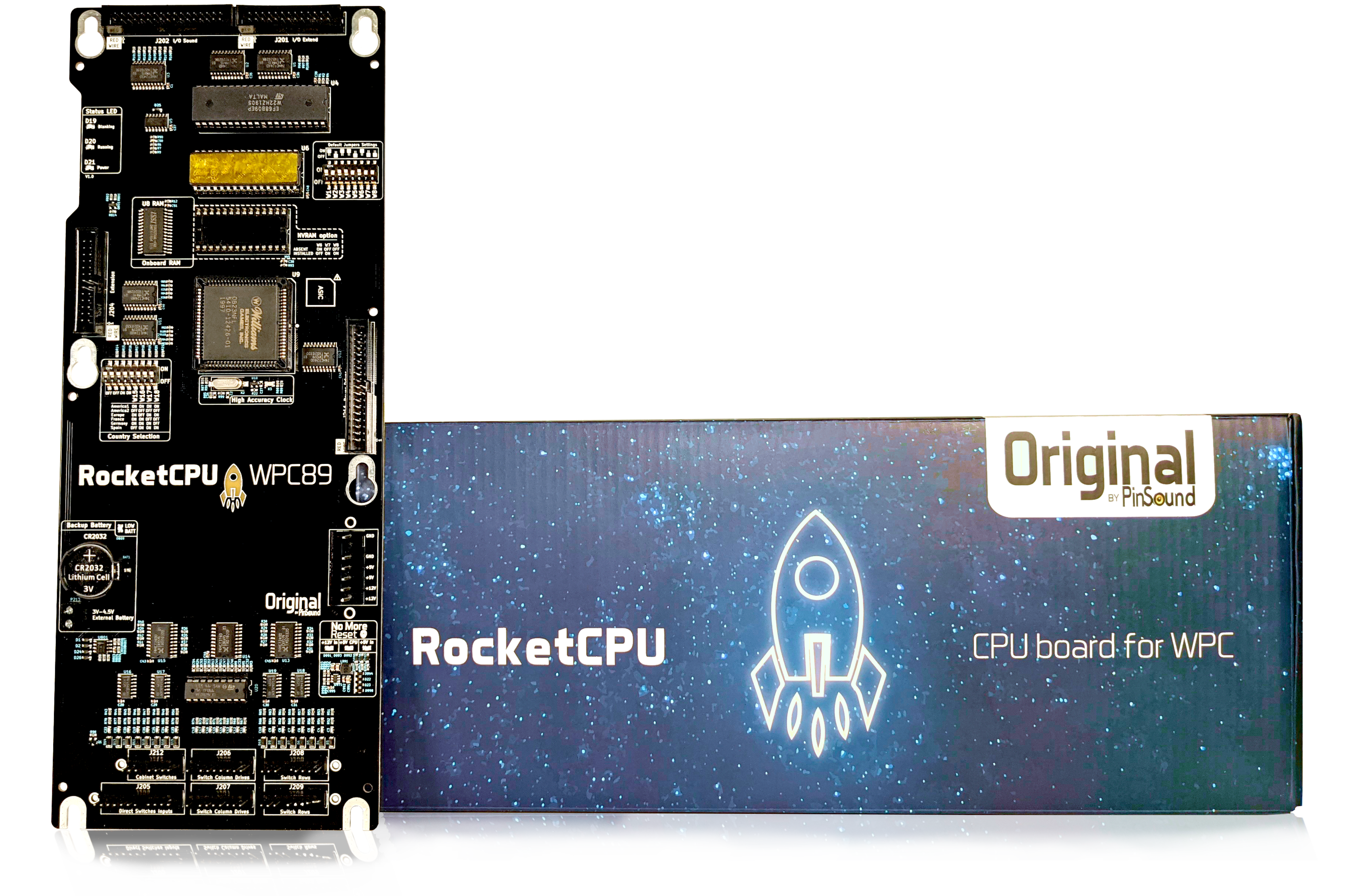

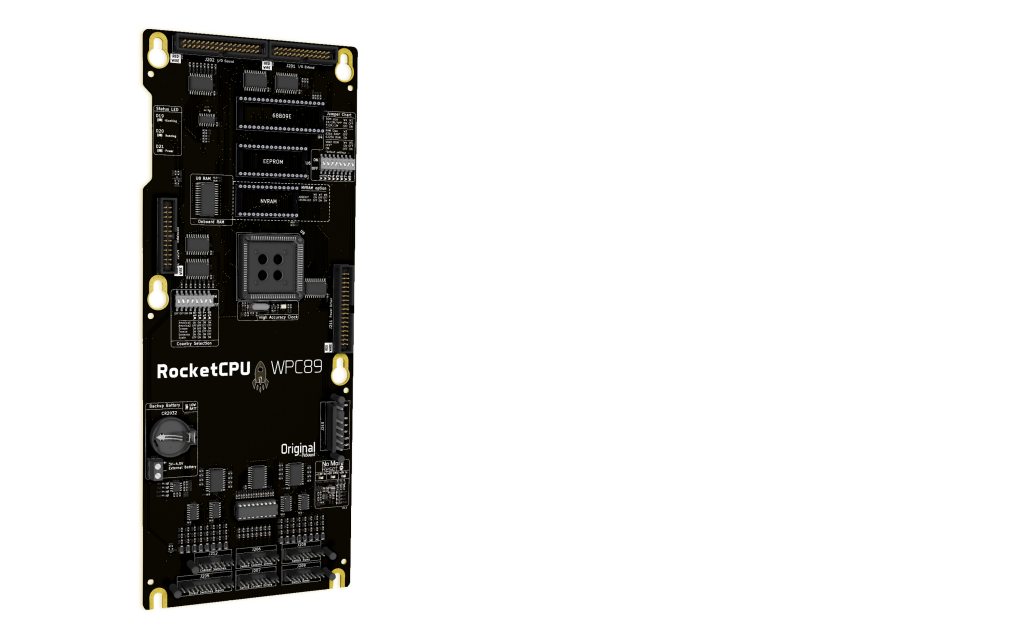

The RocketCPU is a drop in replacement board for your original WPC CPU. Fully compatible with your Bally / Williams pinball machine.

Exact same schematics as original, with some extra features: integrated No More Reset, CR2032 battery, remote battery holder, shrouded ribbon connectors, high accuracy clock and more.

Easy configuration and installation

Integrated
No More Reset

Smart self-diagnosis
status LED

100% compliant with
original CPU board

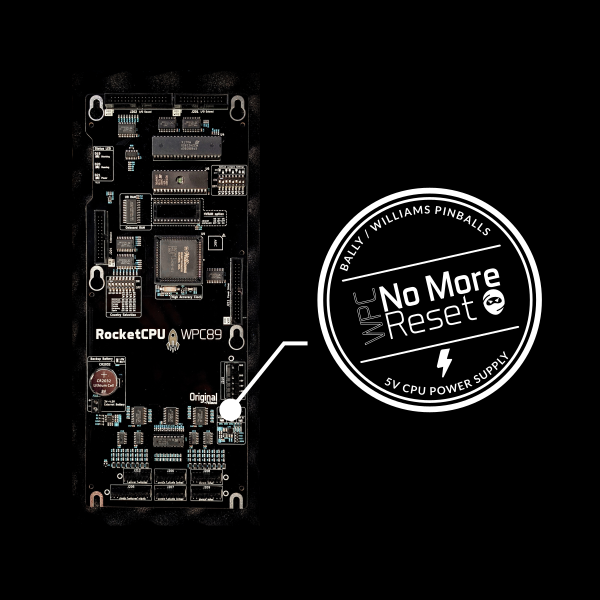

Integrated No More Reset

Tired of untimely resets? No More Reset prevents any +5V issue that can affect your WPC pinball machine.

No need to buy the addon: it’s already integrated onto the RocketCPU!

Find which CPU is compatible with your Bally Williams WPC Pinball machine

In stock

Order now !

Bally Williams WPC 89 Pinball Machines

Black Rose | Bram stocker’s Dracula | Creature From The Black Lagoon | Demolition Man | Doctor Who | Fish Tales | Funhouse | Gilligan’s Island | Harley-Davidson | Hurricane |  Indiana Jones: The Pinball Adventure | Judge Dredd | Party Zone | Popeye Saves the Earth | Star Trek: The Next Generation | Strike Master (Shuffle Alley) | Terminator 2 | The Addams Family | The Getaway: High Speed II | The Machine: Bride of Pin-bot | Twilight Zone | White Water

You can get more than a CPU

With the “Ready To Play” service, your RocketCPU will be fully equiped with all the required components. Installation steps: remove the original CPU, install the RocketCPU, turn on your machine!

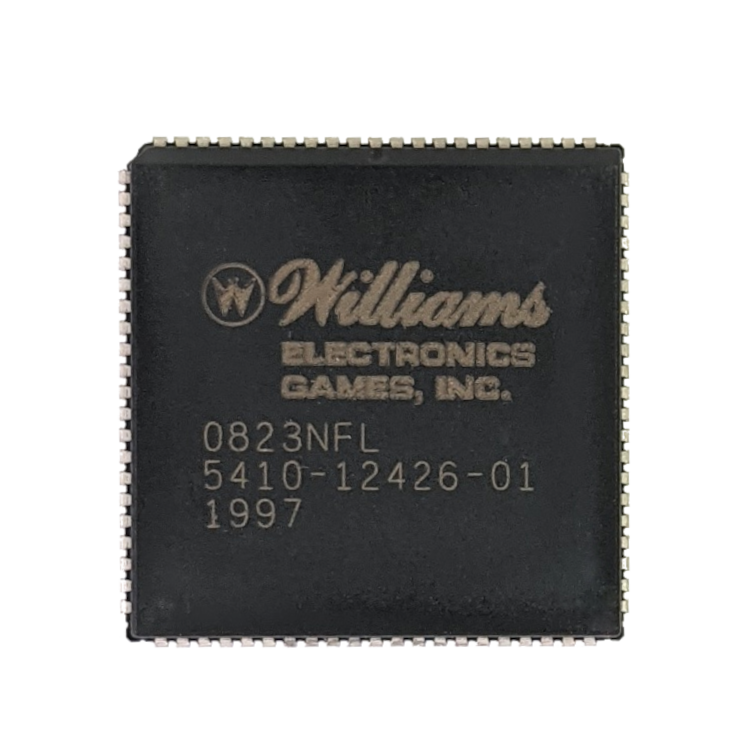

ASIC

Your ASIC is missing or damaged on your original CPU?
You don’t feel confident on how to extract it with the free provided extractor?
Select the “Ready To Play” option and your RocketCPU will be populated with a brand new WPC ASIC.

Micro-processor

The micro-processor can be provided if you select the “Ready To Play” option. Else, you’ll have to transfer it over to the RocketCPU during installation with the free provided tool.

NVRAM

With the “Ready To Play” option, the PinSound NoVaRAM is added. High Score saved forever!

novaram-nvram-for-rocketcpu

Official & Enhanced Bally Williams EPROM

If your game code is not up-to-date, you might be missing game code improvements when you play.
You can get the programmed EPROM for your pinball machine, the game code will be the latest official one provided under agreement with Planetary Pinball Supply.

Some game codes have been recently improved: Creature From The Black Lagoon (5.0) / Demolition Man (7.0) / Junk Yard (2.0) / Mousin’Around (5.0) / Radical (3.0) / Road Show (7.0) / Theatre of Magic (2.0). Update your pinball machine with the latest game code and improve your overall game play.

If you select the “Ready To Play” option, the EPROM (latest version available) will be installed on your RocketCPU.

If you only need the EPROM game code alone (without the RocketCPU), you can buy it directly from the pinball machine page.

2 years warranty

Every PinSound product is designed to offer a high and long-lasting quality. Rocket CPU has been designed and manufactured to guarantee a long lasting product. Once manufactured, each RocketCPU is checked in a fully automated electronical & functionnal test bench. Before dispatch, each RocketCPU is checked by a PinSound team member. RocketCPU is covered by a 2-years warranty and will be replaced if anything happens due to materials or manufacturing defects.

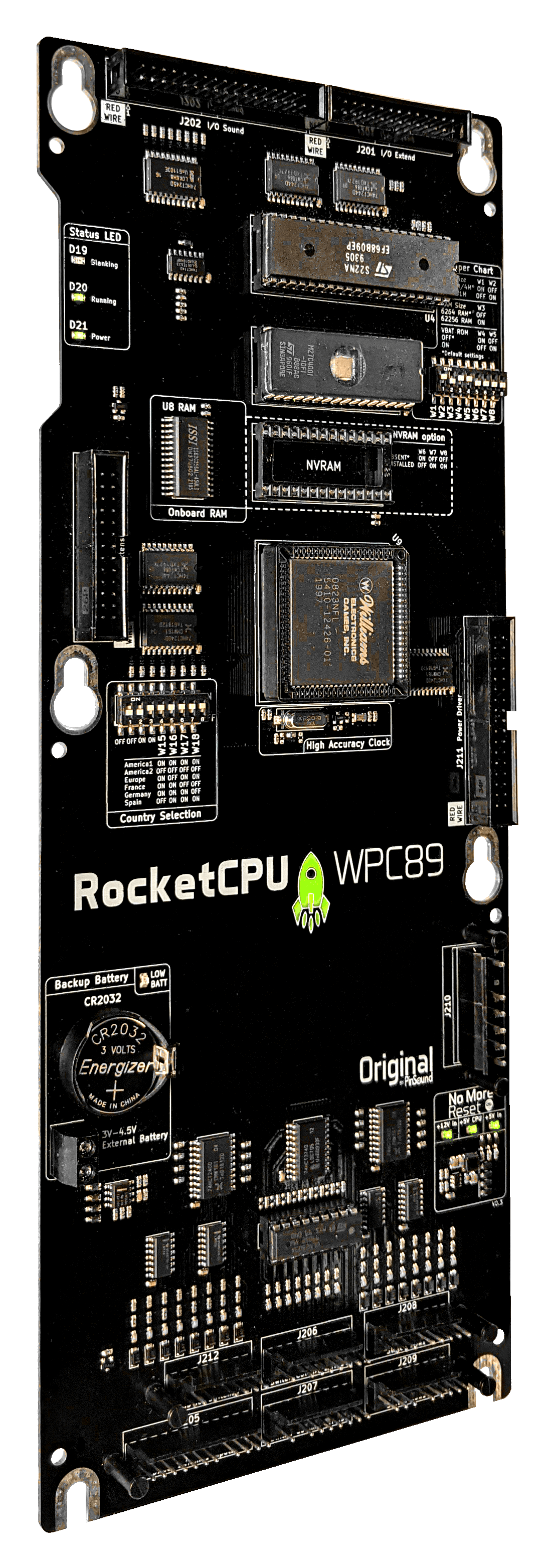

Technical specification

Modern technology for your collectible machine

  • Integrated onboard RAM
  • NVRAM ready with a dedicated socket
  • Configuration switch Bally / Williams fully compliant
  • Lithium coin cell battery CR2032
  • Low battery indicator
  • Additional terminal for remote battery holder
  • Ultra precise clock and RTC oscillators
  • Low time keeping drift
  • Shrouded ribbon connectors
  • Easy socketed darlington transistor buffer for easy and fast swap
  • Integrated onboard No More Reset
  • High quality components
  • Mis-insertion D-proof connectors
  • Watchdog disable feature
  • No More Reset disable feature
  • Backlight disable feature
  • Original schematics 100% compliance
  • Ribbon side easy identification
  • Switch for quick configuration (no jumper or soldering)
  • Switch settings factory configured
  • Original form factor compliance
  • Original connector spacing compliance (for external mods compatibility)
  • Self backlight when CPU is running

RocketCPU WPC89 is a replacement part for WPC-89 CPU A-12742, MPU089.

New RocketCPU coming soon

Bally Williams WPC Security Pinball machines

Corvette | Dirty Harry | Indianapolis 500 | Jack-Bot | Johnny Mnemonic | No Fear: Dangerous Sports | Red & Ted’s Road Show | The Flinstones | The Shadow | Theatre of Magic | WHO Dunnit | World Cup Soccer

Bally Williams WPC 95 Pinball machines

Attack From Mars | Cactus Canyon | Cirqus Voltaire | Congo | Junk Yard | Medieval Madness | Monster Bash | NBA Fastbreak | No Good Gofers | Safe Cracker | Scared Stiff | Tales Of The Arabian Nights | The Champion Pub

Subscribe to our mailing list to be the first to know when

the WPC-S and WPC-95 RocketCPU are available

Compatible with every
Bally Williams WPC89 Pinball machines

Get yours now !

Some of your feedback

I just want to say bravo for the visual quality (and I don't doubt of the perfs) of the rocket! Gosh, I'll don't bother to fix it anymore
Ludovic
Ludovic
And ... it's aliiiiiive! Thank you 1000 times for your support! I will not fail to give you good press!
Thomas
Thomas
Congratulations for your work, I have followed you for several years and I admire the passion you put into the development of your products to improve our pinball machines or even bring them back to life.
Adrien
Adrien
Previous
Next

MADE BY THE PINSOUND BROTHERS

More than 10 years ago, Nicolas and Timothée, aka “The PinSound Brothers”, set themselves the challenge of designing a new sound board from scratch to improve the sound of their favorite pinball machine: The Twilight Zone.

Passionate about pinball machines since childhood and coming from a family of musicians, Nicolas and Timothée are trained engineers, respectively in software and hardware.

After two whole years of development and sleepless nights, the alliance of this shared passion and their technical expertise gave birth to the very first replacement sound board for pinball machines: the “PinSound Board”. The PinSound adventure was just beginning!

After a very enthusiastic reception from the community, the two brothers continued to innovate to offer even more products. Always with the same objective: to give you a totally new and immersive experience with your pinball machine.

In addition to new soundtracks, PinSound now offers products such as replacement CPU boards, shaker kits, speaker kits, headphone connectivity… These products are compatible with 150+ different pinball machines, including the latest STERN Spike pinball machines.
