The perfect DMD controller board

For your Bally Williams WPC pinball machine

Setup in less than 30 seconds

No soldering

No technical skill

3 levels adjustable brightness

Compatible with every Bally Williams WPC Pinball machines

DMDLux works on all Bally Williams WPC models (89/DCS) and with every DMD displays

DMDLux works on all Bally Williams WPC models (89/DCS/95) and with every DMD displays

DMDLux is a replacement part for:  Bally / Williams A-14039 and 5760-12710-12   |   Rottendog DMD089   |   XPin XP-WPCDMD-CTRL   |  Marcospecialties Pin-Tek PTK-WPCDMD

DMDLux is a replacement part for:  Bally / Williams A-14039 and 5760-12710-12   |   Rottendog DMD089   |   XPin XP-WPCDMD-CTRL   |  Marcospecialties Pin-Tek PTK-WPCDMD | Bally / Williams WPC95 audio/video A-20516-50041 (PinSound PLUS or NEO sound board required)

Bally Williams WPC 89 pinballs: The Getaway: High Speed II | Black Rose | Creature From The Black Lagoon | Doctor Who | Dracula | Fish Tales  |  Gilligan’s Island | Hurricane | Party Zone | SlugFest | Strike Master (Shuffle Alley) | Terminator 2 | The Addams Family | Twilight Zone | White Water

Bally Williams WPC DCS pinballs: Corvette | Demolition Man | Dirty Harry | Indiana Jones: The Pinball Adventure | Indianapolis 500 | Jack-Bot | Johnny Mnemonic | Judge Dredd | No Fear: Dangerous Sports | Popeye Saves the Earth | Red & Ted’s Road Show | Star Trek: The Next Generation | The Flinstones | The Shadow | Theatre Of Magic | WHO Dunnit | World Cup Soccer

Bally Williams WPC 95 pinballs (“No Audio Video setup“, a PinSound PLUS or NEO sound board will be required): Attack From Mars | Cactus Canyon | Cirqus Voltaire | Congo | Junk Yard | Medieval Madness | Monster Bash | NBA Fastbreak | No Good Gofers | Safe Cracker | Scared Stiff | Tales Of The Arabian Nights | The Champion Pub

The most reliable DMD controller board

DMDLux is a replacement DMD controller board for any Bally Williams WPC pinball machines. It has been carefully designed to be the most reliable and coldest DMD controller board ever created.

2 years warranty

Every PinSound product is designed to offer a high and long-lasting quality. DMDLux has been designed and manufactured to guarantee a long lasting product. DMDLux is covered by a 2-years warranty and will be replaced if anything happens due to materials or manufacturing defects.

In stock

Order now !

Adjustable brightness

Ridiculously easy to switch

3 levels adjustable brightness

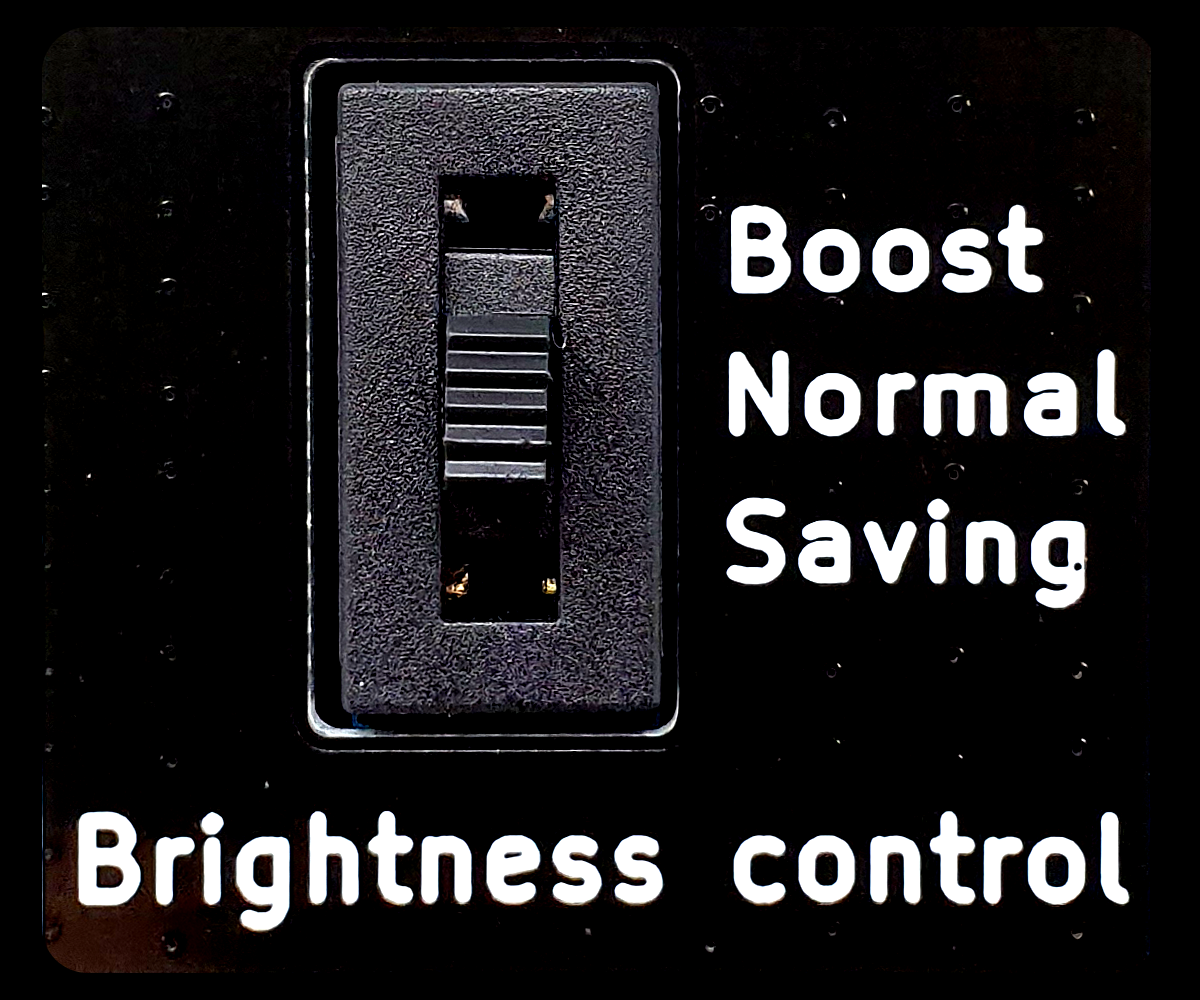

DMDLux controller board allows you to switch the brightness of your DMD display on the fly.

No need to swap or solder a resistance, the brightness control button can be set at any time:

  • BOOST → 120 % brightness – for a brighter (or worn-out) DMD display
  • NORMAL → 100 % brightness – normal DMD brightness
  • SAVING → 80 % brightness – for lower energy consumption and longer DMD life

High Efficiency Design

A refreshing new power supply design

The high voltage power supply section usually generates a lot of heat and stress on DMD controller boards. After a while, it can result in early failures or burnt components. DMDLux has been designed with a very high efficiency power supply to offer a longer life expectancy.

It has been a technical challenge to develop a super efficient power supply design for the DMDLux, thus a very low thermal dissipation. Electronic components reliability and temperature are greatly related: keeping components cool (less than 100°C / 212°F), extends the life expectancy of the whole product.

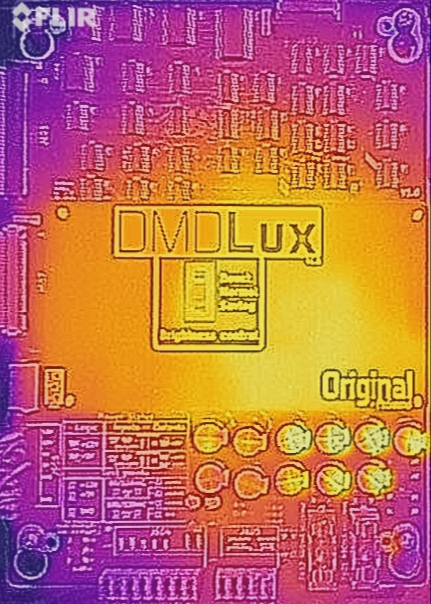

PinSound LAB: we ran a comparative tests on the different existing DMD controller boards, following a strict protocol.

Test conditions:

  • 25°C (77°F) ambient room temperature
  • The Addams Family pinball machine
  • Backbox opened
  • J605 input voltages: 84VAC(RMS) / 107VAC(RMS)
  • Output voltages: +62VDC / -125VDC
  • Dot Matrix Display 128×32 BABCOCK
  • Thermal camera FLIR ONE

Test steps:

  • Game powered on and on idle for 10 minutes
  • System menu / display test / full screen on for 30 sec
  • Temperature measurement on the hottest point

Test display content (full screen)

Technical specification

Modern technology for your collectible machine

  • 100% compliant with the original data logic processing
  • 100% identical data logic circuitry and components references
  • Advanced thermal dissipation design
  • Exclusive power supply design
  • CMOS efficient and fast logic gate circuit technology
  • 3 user friendly switch for brightness: saving / normal / boost
  • Mis-insertion pegs and keys (PinSound D-proof connectors)
  • Shrouded data ribbon connector
  • Standard 5x20mm fuses cartridges (400mA fast)
  • ColorDMD +5V / 12V dedicated power connector
  • Over-voltage protection
  • Over-current protection
  • Short-circuit protection

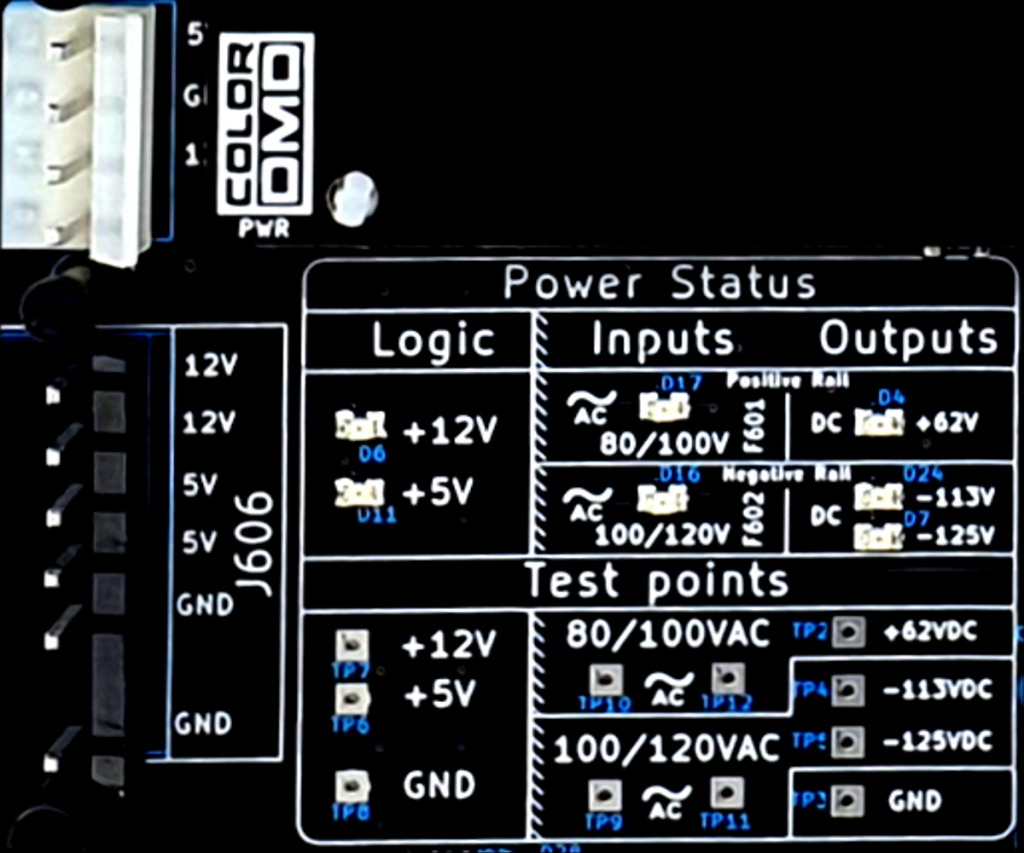

  • 7 status LED for each voltage rails with minimum voltage detection
  • Test point for each voltage rails

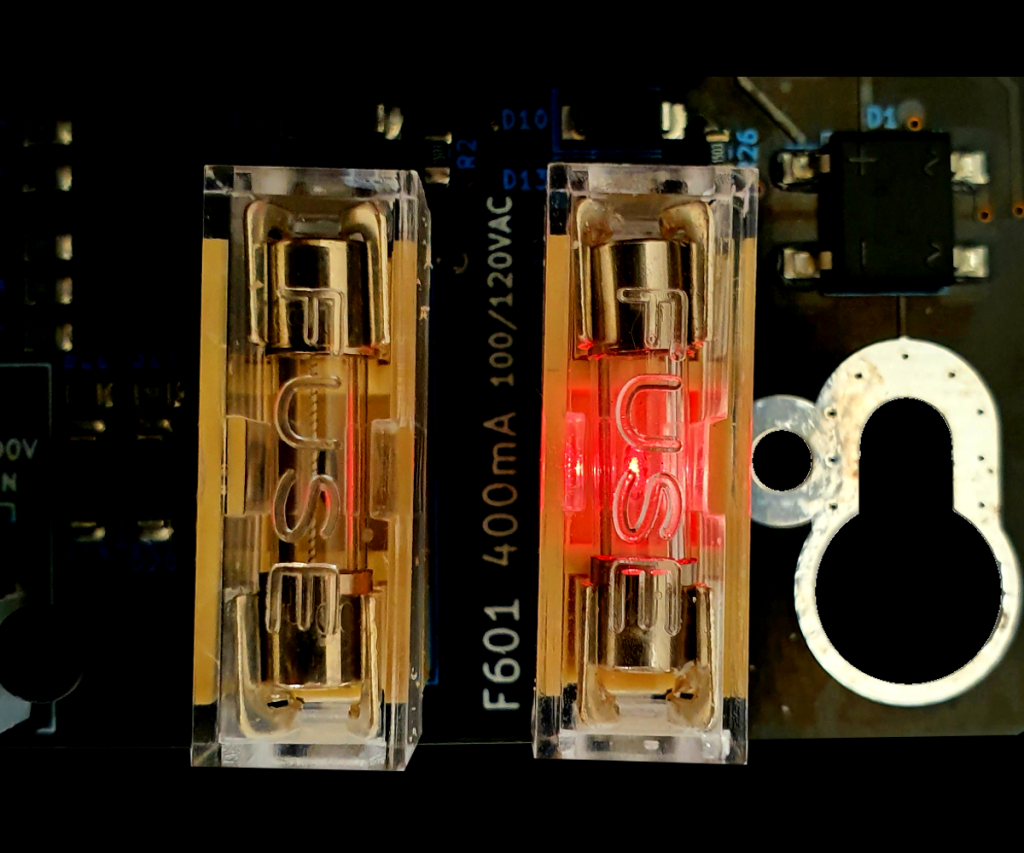

  • Self diagnosis blown fuses: red LED backlit if blown

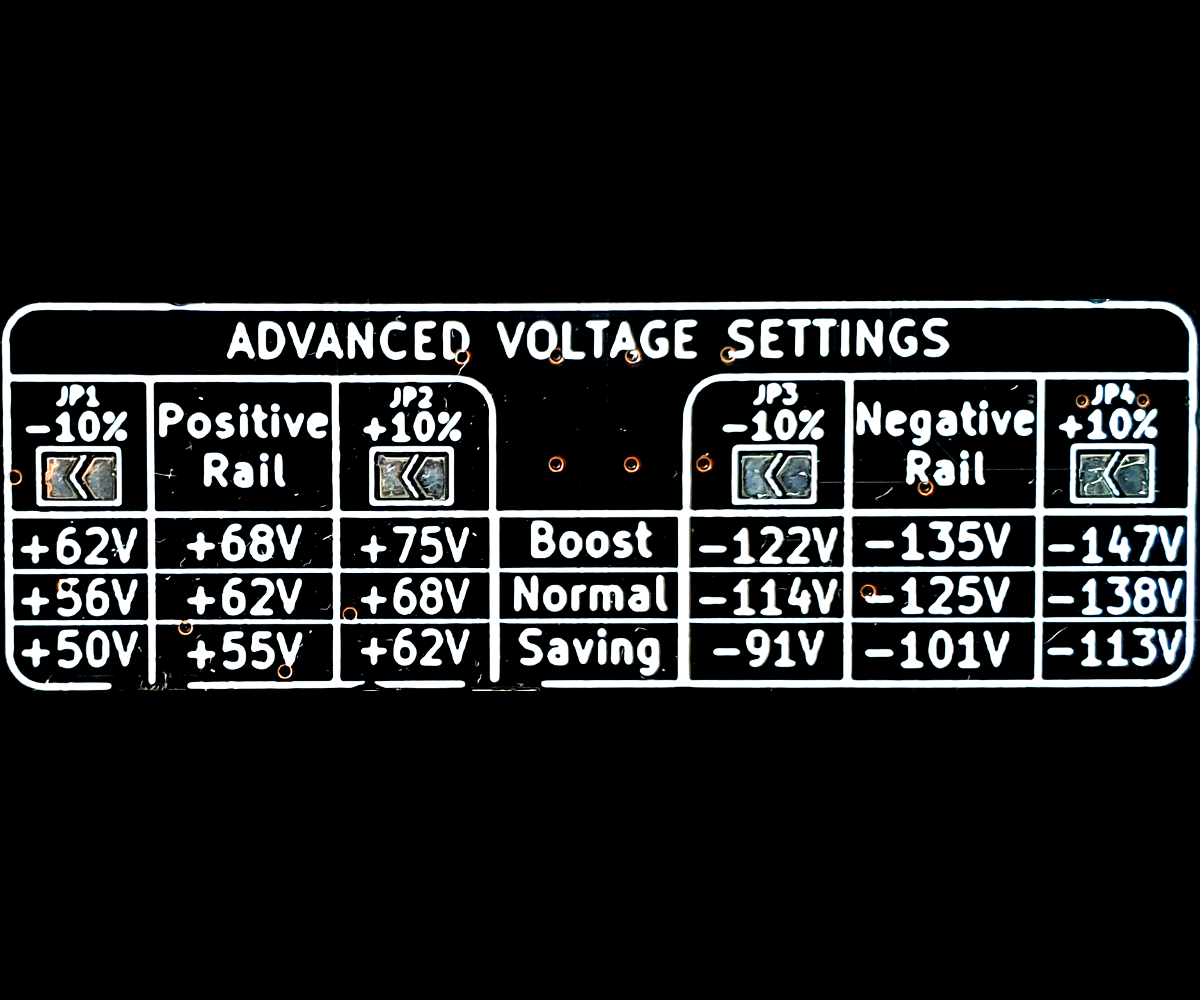

  • 18 Advanced Voltage Settings
  • 150% factory burn-in test

DMDLux

Universal WPC DMD Controller board

Get yours now !

Some of your feedback on the DMDLux

By the way the circuit boards u make are really amazing - the DMD controller is perfect and just what i needed and replaces the original which was badly overheated.
Mike
Mike
Thank you very much! Finally got around to installing it and works perfectly as expected. You guys do great work!
David
David
My DMDlux is working great on my Johnny Mnemonic Pin! I keep the brightness at the default 'middle' because I want to extend the life of the original gas DMD. Works like a charm!
Henry
